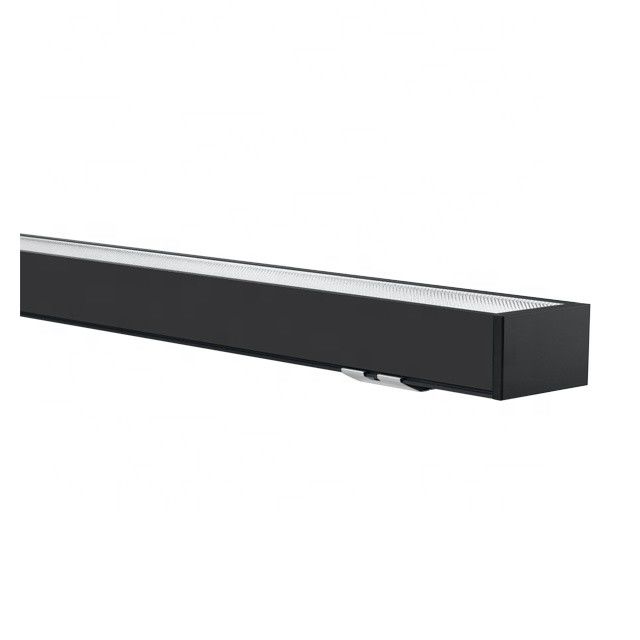

Aluminum Recessed Linkable LED Linear Light With 5 Years Warranty

Aluminum Recessed Linkable LED Linear Light With 5 Years Warranty

Aluminum Recessed Linkable LED Linear Light With 5 Years Warranty
Aluminum Recessed Linkable LED Linear Light With 5 Years Warranty Aluminum Recessed Linkable LED Linear Light With 5 Years Warranty Aluminum Recessed Linkable LED Linear Light With 5 Years Warranty Aluminum Recessed Linkable LED Linear Light With 5 Years Warranty Aluminum Recessed Linkable LED Linear Light With 5 Years Warranty

Large Image :  Aluminum Recessed Linkable LED Linear Light With 5 Years Warranty Get Best Price

Product Details:

Place of Origin: China
Brand Name: USKYLED
Model Number: USKY5065

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: carton
Delivery Time: 10 to 15 work days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Light Source: LED Input Voltage(v): AC100-240V
Warranty(years): 5 Item Type: Led Light Fixture
Lamp Body Material: Aluminum + PC Ip Rating: IP44
Led Light Source: SMD2835 Color Temperature(cct): 2700-6500K
Application: Supermarket,office,WAREHOUSE,indoor,etc
High Light:

led linear fixture

,

led linear lighting

Aluminum Recessed Linkable LED linear light led linear led shop light



USKY5065 series led linear lights features:

1.Connect with seamless, form with line shape.
2.Connect by 4pcs pillar which lead stable and seamless.
3.Suspension, Surface mounted, wall mounted, recessed linear lights 50mm*65mm.
4.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.
5.PC cover transmitting rate reach 86%, luminous reach 110lm/w.
6.AGT isolated driver, no flickering, no glaring.CIR ≥ 80.PF ≥ 0.9.
7.Dimmable and CCT changing available.

8.0~10V/DALI dimming options.

9.5 years warranty.





Setting Information
Input Voltage
AC100-240V
Watts
20/40/60/80W
Color Temperature
3000-6500k
Lumen(lm/w)
100lm/w
installation
Pendant/Wall mounted /Suspended
Dimmension(mm)
W50*H65mm
Material
Aluminum+PC
Warranty
5 years



product Description



LED linear light also named LED batten light, LED tube light, linear light USKY7035-RC2 series use high lumens epstar chip SMD 2835, it can reach 100lm/w. Aluminum housing and PC cover materials. These products use recessed installation. The linear lights can be linkable according to the actual application scenario.The use of line lights is very extensive and you can see them always everywhere.





LED Linear light dimensions.

Model Number: USKY5065.
Line light Width: 50mm
Line light Height: 65mm
Line Light Length: 600/1200/1800/2400mm

Material: Aluminium .

Accessories: Aluminium profile, PC cover, Aluminum plug, Ceiling light buckle:4. Snap screw:8. Plug screw: 4.



 Application of the linear lights:

Use in shopping mall, office, school, leisure site, garage, factory, school, supermarket, hospital, store

LED Linear Suspended series LED luminaire is an energy-efficient, low maintenance alternative to traditional fluorescent in a variety of commercial and industrial lighting applications. The smart design makes this fixture offered in surface mounted, suspended and recessed in one fixture. The lightweight and easy to install LED linear light fixtures are all designed to offer maximum energy saving.





Advantage of the linear lights:


Size Installation Connection Design
2/3/4/5/6/8ft are optional

Available for Suspended, Recessed, Surface mount, Wall mount.

All installation could finish in the same fixture, just need different kind of accessories.



PS: mud in flange and recessed flange for decorative is optional.

Fixture could connect in a long row.

Available for electrical connection too!

Different corner to creat different shape, like T/X/L corner

Snap in Lens in the front of fixture helps for future maintenance and installation

FAQ



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
